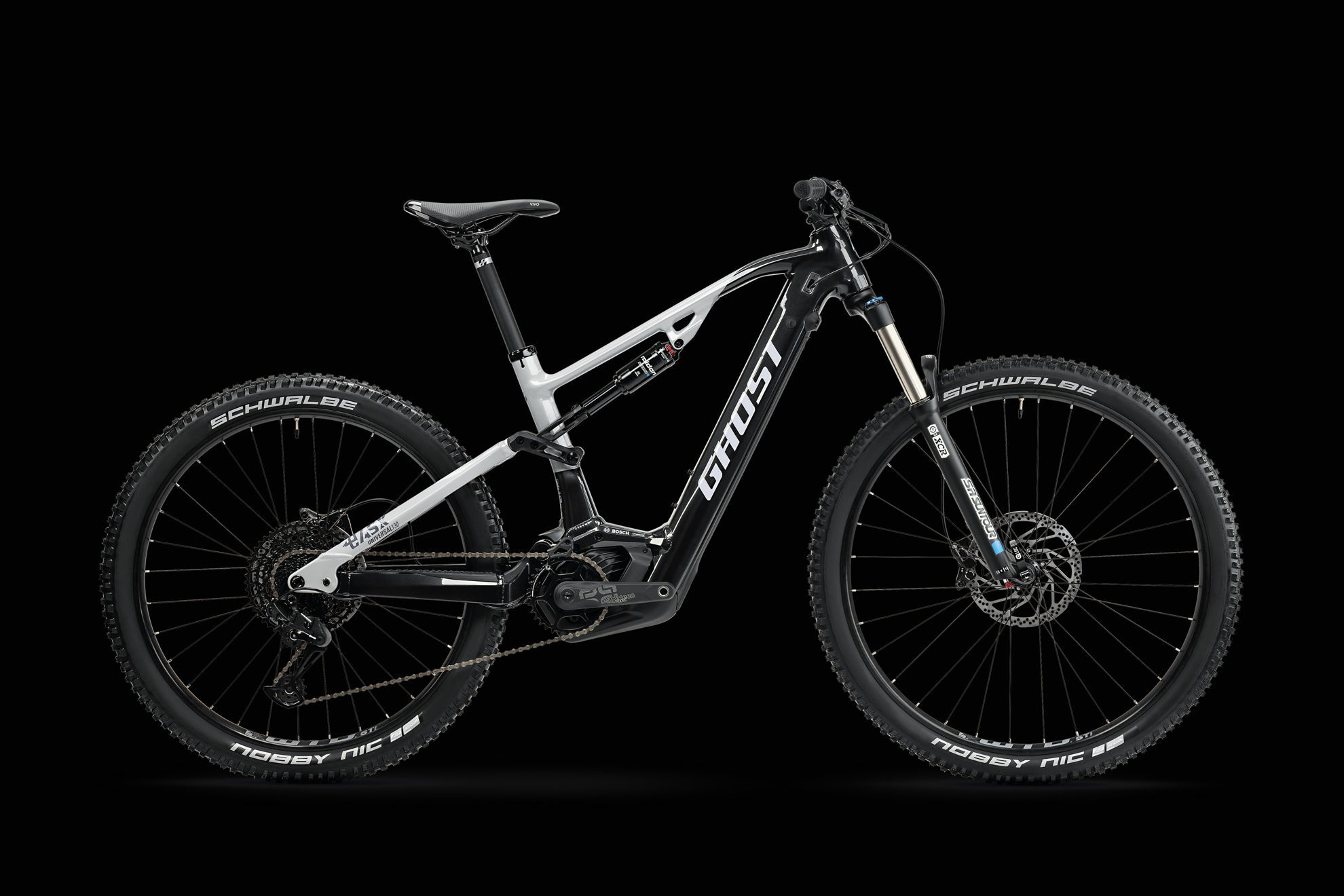

GHOST E-ASX 130 UNIVERSAL FS Bosch 750Wh - 85 Nm size M-XL

link

Bike Geometry

• Bottom bracket drop [mm]: -30 mm
• Chain stay length [mm]: 460 mm
• Head tube angle: 66 degrees
• Head tube length [mm]: 160 mm
• Reach [mm]: 500 mm
• Stack [mm]: 658 mm
• Stand over height [mm]: 759 mm
• Seat tube angle: 76 degrees
• Seat tube length [mm]: 510 mm
• Top tube length [mm]: 664 mm
• Wheelbase [mm]: 1294 mm

Brake system

• Brake Rear Mount: Post Mount
• Brake Front Description: Shimano, BR-MT420 203 mm Disc
• Brake Rear Description: Shimano, BR-MT420 203 mm Disc
• Brake Lever Description: Shimano, BL-M4100
• Brake Rotor Description: Shimano, SM-RT30/RT-EM300 203 mm

Drivetrain

• Cassette Teeth: 11
• Crank Arm length: 170
• Crankset Teeth: 34
• Number Of Gears: 12
• Pedal Inclusive: Yes
• Cassette Description: Sram, PG-1210
• Chain Description: Sram, SX Eagle
• Crankset Description: E Thirteen, e*spec Plus
• Derailleur Hanger Description: Sram, UDH
• Derailleur Rear Description: Sram, SX Eagle 12-S
• Gear Description: Sram, Derailleur
• Pedal Description: VP, VPE-527
• Shifter Right Description: Sram, SX Eagle Single Click

E-bike components

• Battery Capacity: 750 Wh
• Battery Location: Downtube
• Motor Torque [nm]: 85 Nm
• Motor Location: Center
• Battery Description: Bosch, Power Tube 750 Wh
• Charger Description: Bosch, Charger 4 Ah
• Display Description: Bosch, LED Remote
• Motor Description: Bosch, Performance Line CX

Frame and more

• Framesize Convection: XL
• Max loadable weight (KG): 120 kg
• Front Fork Type: Suspension
• Suspension Type: Fully
• Travel Front: 130 mm
• Travel Rear: 130 mm
• Front Fork Description: Suntour, XCR34 Air Boost LOR DS 130 mm
• Frame Description: Unisex, Aluminium, Uni
• Shock Description: Suntour, Raidon R 130 mm

Handlebar and Saddle

• Handlebar Rise: 25
• Handlebar Width: 780 mm
• Stem Length: 45 mm
• Handgrip Description: WTB, Wafel
• Handlebar Description: Ghost, Ground Fiftyone Dia. 31.8 mm
• Headset Description: Acros, AZX-205
• Saddle Description: Selle Royal, Vivo
• Seatpost Description: Ghost, Non Suspension, SP DC1, Dia. 31.6 mm
• Stem Description: Ghost, Ground Fiftyone Dia. 31.8 mm

Wheels and wheel components

• Hub Front Description: Shimano, HB-MT400-B 15x110 mm
• Hub Rear Description: Shimano, FH-MT400-B 12x148 mm
• Rim Description: WTB, ST i30
• Rim Rear Description: WTB, ST i30
• Spoke Description: DT Swiss, FACTORY 2.0
• Tyre Description: Schwalbe, Nobby Nic Performance 2.4
• Tyre Rear Description: Schwalbe, Nobby Nic Performance 2.6
• Wheelsize Description: 29, 27.5
